CCNA 2 V5 RSE Chapter 6 Exam Answers


1. What are two advantages of static routing over dynamic routing? (Choose two.)

Static routing is more secure because it does not advertise over the network.*
Static routing is relatively easy to configure for large networks.
Static routing requires very little knowledge of the network for correct implementation.
Static routing uses fewer router resources than dynamic routing.*
Static routing scales well with expanding networks.


2.



Refer to the exhibit. Which is the best way for PC A and PC B to successfully communicate with sites on the Internet?

Configure a default route from R1 to ISP and a static route from ISP to R1.*
Configure a static route from R1 to ISP and a dynamic route from ISP to R1.
Configure a routing protocol between R1 and ISP and advertise all the routes.
Configure a dynamic route from R1 to ISP and a static route from ISP to R1.


3



Refer to the exhibit. The small company shown uses static routing. Users on the R2 LAN have reported a problem with connectivity. What is the issue?

R1 and R2 must use a dynamic routing protocol.
R1 needs a default route to R2.
R2 needs a static route to the Internet.
R2 needs a static route to the R1 LANs.
R1 needs a static route to the R2 LAN.*


4.



Refer to the exhibit. The network engineer for the company that is shown wants to use the primary ISP connection for all external connectivity. The backup ISP connection is used only if the primary ISP connection fails. Which set of commands would accomplish this goal?

ip route 198.133.219.24 255.255.255.252
ip route 64.100.210.80 255.255.255.252

ip route 198.133.219.24 255.255.255.252
ip route 64.100.210.80 255.255.255.252 10

ip route 0.0.0.0 0.0.0.0 s0/0/0
ip route 0.0.0.0 0.0.0.0 s0/1/0

ip route 0.0.0.0 0.0.0.0 s0/0/0
ip route 0.0.0.0 0.0.0.0 s0/1/0 10 *


5. What type of route allows a router to forward packets even though its routing table contains no specific route to the destination network?

generic route
destination route
dynamic route
default route*


6.



Refer to the graphic. Which command would be used on router A to configure a static route to direct traffic from LAN A that is destined for LAN C?

A(config)# ip route 192.168.3.2 255.255.255.0 192.168.4.0
A(config)# ip route 192.168.5.0 255.255.255.0 192.168.3.2
A(config)# ip route 192.168.3.0 255.255.255.0 192.168.3.1
A(config)# ip route 192.168.4.0 255.255.255.0 192.168.3.2*
A(config)# ip route 192.168.4.0 255.255.255.0 192.168.5.2


7. The network administrator configures the router with the ip route 172.16.1.0 255.255.255.0 172.16.2.2 command. How will this route appear in the routing table?

S 172.16.1.0 is directly connected, Serial0/0
S 172.16.1.0 [1/0] via 172.16.2.2*
C 172.16.1.0 [1/0] via 172.16.2.2
C 172.16.1.0 is directly connected, Serial0/0


8.



Refer to the exhibit. The network administrator needs to configure a default route on the Border router. Which command would the administrator use to configure a default route that will require the least amount of router processing when forwarding packets?

Border(config)# ip route 0.0.0.0 0.0.0.0 s0/0/1*
Border(config)# ip route 0.0.0.0 0.0.0.0 198.133.219.5
Border(config)# ip route 0.0.0.0 0.0.0.0 s0/0/0
Border(config)# ip route 0.0.0.0 0.0.0.0 198.133.219.6


9. Why would a floating static route be configured with an administrative distance that is higher than the administrative distance of a dynamic routing protocol that is running on the same router?

to be the priority route in the routing table
to be used as a backup route*
to act as a gateway of last resort
to load-balance the traffic


10.



Refer to the exhibit. What command would be used to configure a static route on R1 so that traffic from both LANs can reach the 2001:db8:1:4::/64 remote network?

ipv6 route 2001:db8:1::/65 2001:db8:1:3::1
ipv6 route 2001:db8:1:4::/64 2001:db8:1:3::2*
ipv6 route 2001:db8:1:4::/64 2001:db8:1:3::1
ipv6 route ::/0 serial0/0/0


11.



Refer to the exhibit. Which default static route command would allow R1 to potentially reach all unknown networks on the Internet?

R1(config)# ipv6 route 2001:db8:32::/64 G0/1 fe80::2
R1(config)# ipv6 route ::/0 G0/0 fe80::2
R1(config)# ipv6 route ::/0 G0/1 fe80::2*
R1(config)# ipv6 route 2001:db8:32::/64 G0/0


12. Which two statements describe classful IP addresses? (Choose two.)

All subnets in a network are the same size.*
Only Class A addresses can be represented by high-order bits 100.
Three of the five classes of addresses are reserved for multicasts and experimental use.
The number of bits used to identify the hosts is fixed by the class of the network.*
Up to 24 bits can make up the host portion of a Class C address.
It is possible to determine which class an address belongs to by reading the first bit.


13. A company has several networks with the following IP address requirements:

IP phones – 50
PCs – 70
IP cameras – 10
wireless access points – 10
network printers – 10
network scanners – 2

Which block of addresses would be the minimum to accommodate all of these devices if each type of device was on its own network?

172.16.0.0/23
172.16.0.0/24*
172.16.0.0/22
172.16.0.0/25


14. What does VLSM allow a network administrator to do?

utilize one public IP address to translate multiple private addresses
utilize multiple different subnet masks in the same IP address space*
utilize one dynamic routing protocol throughout the entire network
utilize multiple routing protocols within an autonomous system
utilize one subnet mask throughout a hierarchical network


15. What would be the best summary route for the following networks?

10.50.168.0/23
10.50.170.0/23
10.50.172.0/23
10.50.174.0/24

10.50.160.0/22

10.50.164.0/23

10.50.168.0/16

10.50.168.0/21*

10.50.168.0/22

10.50.168.0/23


16. What is a valid summary route for IPv6 networks 2001:0DB8:ACAD:4::/64, 2001:0DB8:ACAD:5::/64, 2001:0DB8:ACAD:6::/64, and 2001:0DB8:ACAD:7::/64?

2001:0DB8:ACAD:0000::/63
2001:0DB8:ACAD:0000::/64
2001:0DB8:ACAD:0004::/62*
2001:0DB8:ACAD:0004::/63


17. Which type of static route that is configured on a router uses only the exit interface?

directly connected static route*
fully specified static route
default static route
recursive static route


18. Which three IOS troubleshooting commands can help to isolate problems with a static route? (Choose three.)

show ip route*
show ip interface brief*
ping*
tracert
show arp
show version


19.



Refer to the exhibit. What two commands will change the next-hop address for the 10.0.0.0/8 network from 172.16.40.2 to 192.168.1.2? (Choose two.)

A(config)# ip route 10.0.0.0 255.0.0.0 192.168.1.2*
A(config)# ip route 10.0.0.0 255.0.0.0 s0/0/0
A(config)# no ip address 10.0.0.1 255.0.0.0 172.16.40.2
A(config)# no network 10.0.0.0 255.0.0.0 172.16.40.2
A(config)# no ip route 10.0.0.0 255.0.0.0 172.16.40.2*


20. What happens to a static route entry in a routing table when the outgoing interface is not available?

The router polls neighbors for a replacement route.
The router redirects the static route to compensate for the loss of the next hop device.
The route is removed from the table.*
The route remains in the table because it was defined as static.


21.




Launch PT  Hide and Save PT

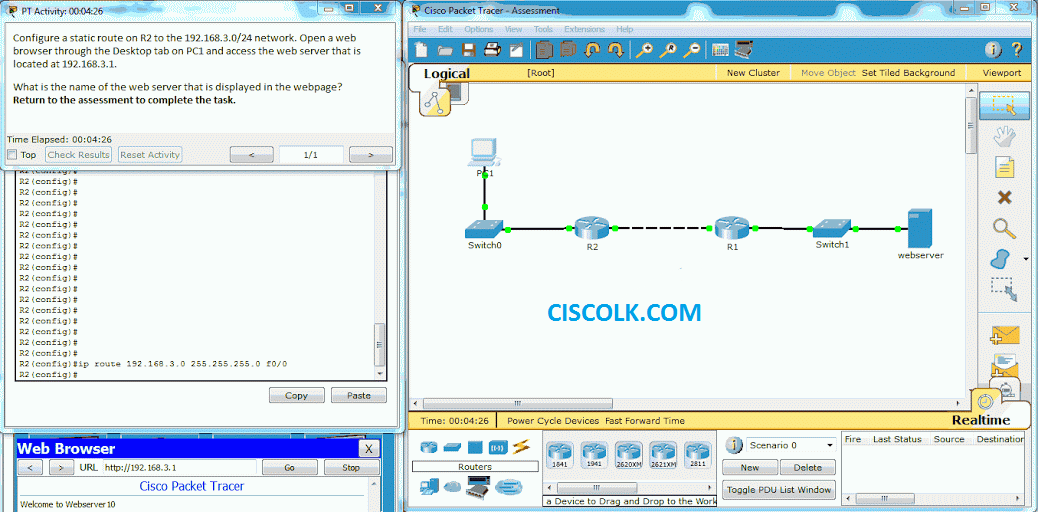

Open the PT activity. Perform the tasks in the activity instructions and then answer the question. What is the name of the web server that is displayed in the webpage?

Webserver10*
Main-Webserver
WWW-Server
MNSRV


22.



Launch PT Hide and Save PT
Open the PT Activity. Perform the tasks in the activity instructions and then answer the question.

What IPv6 static route can be configured on router R1 to make a fully converged network?

ipv6 route 2001:db8:10:12::/64 S0/0/1*
ipv6 route 2001:db8:10:12::/64 2001:db8:32:77::1
ipv6 route 2001:db8:10:12::/64 S0/0/0
ipv6 route 2001:db8:10:12::/64 2001:db8:10:12::1
